Dual-Axis Wobble Series
Customized dual-axis wobble welding head — X/Y independent oscillation, wide weld bead, superior gap-bridging performance

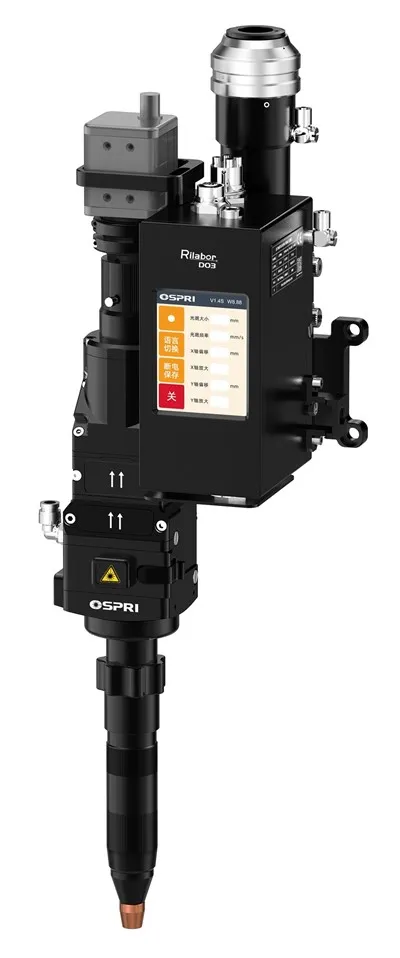

LWD03B0
Monotek Photonics
Dual-Axis Wobble Laser Welding Head
Dual-axis XY oscillation, 3500 mm/s wobble speed — for butt joints, lap joints and battery tab welding
≤3kWRated Power
1080nmWavelength
Dual-AxisType
LWD15A0
Monotek Photonics

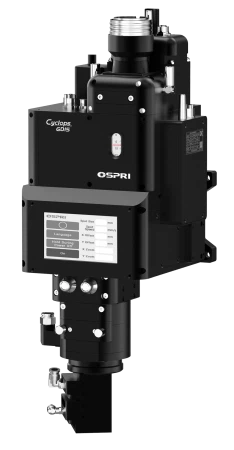

Double Wobble Fiber Laser Welding Head (15KW)
High-power dual-axis wobble head for thick-section welding — extended oscillation amplitude, enhanced gap bridging up to 1.5 mm
≤15kWRated Power
1080nmWavelength
Dual-AxisType
LWD08A0
Monotek Photonics

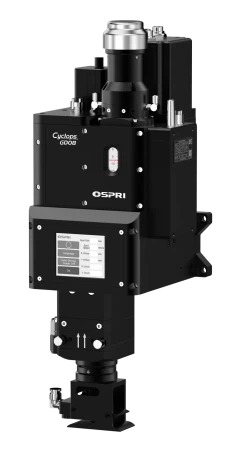

Double Wobble Fiber Laser Welding Head (8KW)
Compact dual-axis wobble head — ≤8kW rated power, ideal for precision seam and battery module welding
≤8kWRated Power
1080nmWavelength
Dual-AxisType
LWD03C0
Monotek Photonics
Double Wobble Wire Push-Pull Welding Head (3KW)
Integrated wire push-pull dual-axis wobble head — ≤3kW, MIG filler wire support for gap-tolerant structural welding
≤3kWRated Power
1080nmWavelength
Wire FeedType
Single-Axis Wobble Series
Single-axis wobble welding head — compact, cost-effective, linear oscillation for seam and fillet welding
LRW20A0
Monotek Photonics

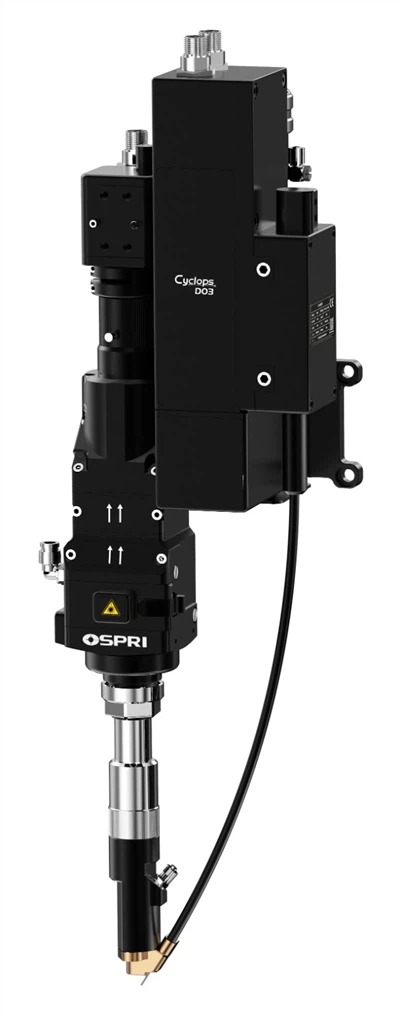

Single Wobble Fiber Laser Welding Head (20KW)
Compact single-axis wobble head — linear oscillation, low-profile body, ideal for robotic arm and automated line integration
≤20kWRated Power
1080nmWavelength
Single-AxisType
LRW15A0
Monotek Photonics

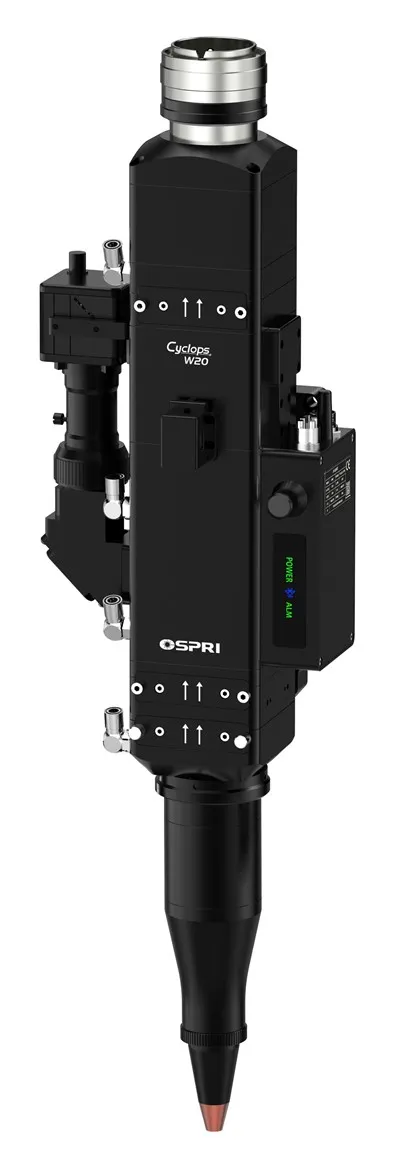

Single Wobble Fiber Laser Welding Head (15KW)
Mid-power single-axis wobble head — sinusoidal and figure-8 patterns, high-speed oscillation up to 150 Hz
≤15kWRated Power
≤150HzMax Freq
0~4mmWobble Range
Dual-Wavelength Composite Series
Customized dual-wavelength composite welding head — co-axial blue + IR beam combining for copper, aluminium and dissimilar metals
LWY08A0
Monotek Photonics
Dual-Wavelength Composite Welding Head (8KW)
Co-axial 450 nm blue + 1080 nm IR composite welding head — superior absorption on copper and reflective metals, spatter reduction
≤8kWRated Power
450+1080nmWavelength
CompositeType
Intelligent Temp Monitoring Series
Customized intelligent temperature monitoring welding head — real-time pyrometer feedback, closed-loop power control for consistent weld quality
LWT15A0
Monotek Photonics
Intelligent Temperature Monitoring Welding Head (15KW)
Integrated pyrometer and closed-loop controller — real-time melt pool temperature feedback, auto power adjustment, weld-quality logging
≤15kWRated Power
1080nmWavelength
Temp MonitorType
LWT08A0
Monotek Photonics

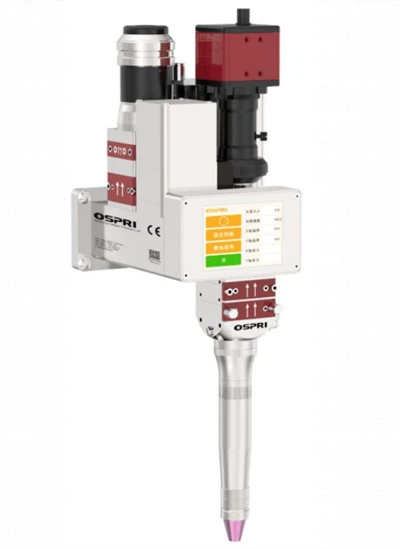

Intelligent Temperature Monitoring Welding Head (8KW)
Factory-customized temperature monitoring head — dual-wavelength pyrometer, custom measurement range, Modbus/EtherCAT integration
≤8kWRated Power
1080nmWavelength
Temp MonitorType
